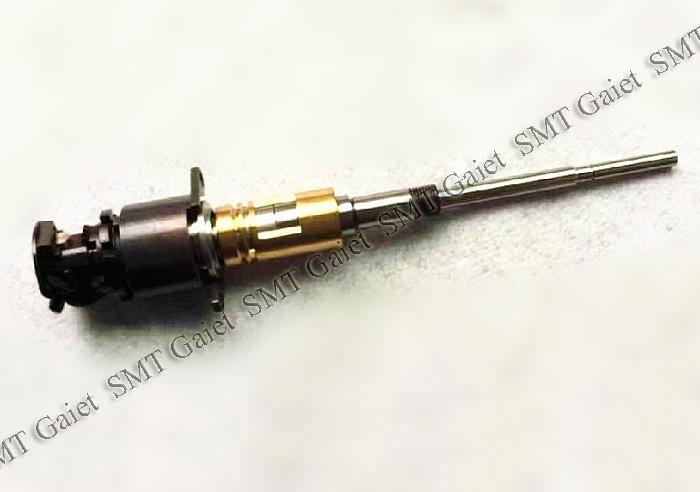

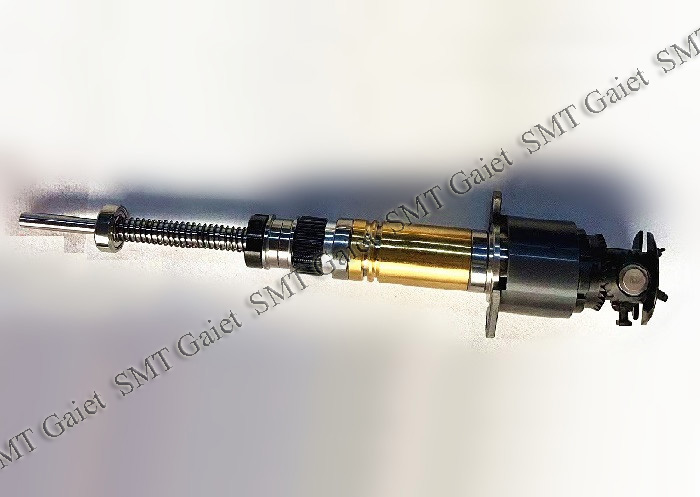

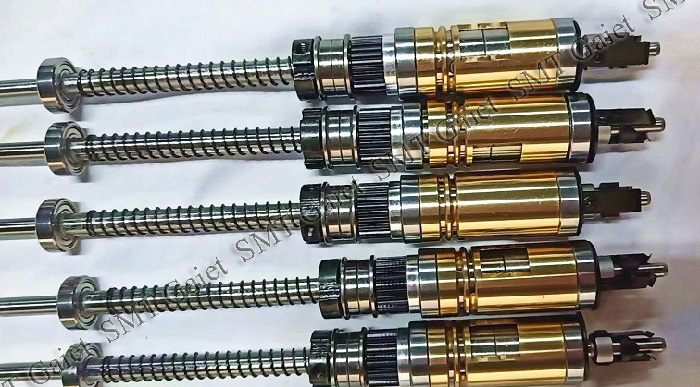

YAMAHA Spline Shaft,Odd Heads SF and FNC KGB-M712S-A0X
Part Name: SMT Spline Shaft
Part Number:KGB-M712S-A0X
Model: YAMAHA YV100XG/YV180XG/YV100XE
YAMAHA Spline Shaft,Odd Heads SF and FNC KGB-M712S-A0X is for YAMAHA Pick and Place Machine YV100XG/YV180XG/YV100XE Series.
We also supply Yamaha Spare Parts as below,
1 KV8-M7101-00X HOUSING HEAD 1
2 KG2-M7181-00X PACKING 28 MYA 4
2-1 90990-22J001 PACKING 28 MYA 4 (2002/1/21) M210051 OK
3 KM1-M7140-00X PACKING 16 MYR-6
3-1 90990-22J003 PACKING 16 MYR-6 (2002/1/21) M210051 OK
4 KM1-M7141-00X PACKING 20 MYA-10A
4-1 90990-22J002 PACKING 20 MYA-10A (2002/1/21) M210051 OK
5 KV8-M7103-00X PISTON PLUG 4
6 KV8-M71Y5-00X PACKING 4 MYA-12.5
6-1 90990-22J015 PACKING 4 MYA-12.5 (2002/1/21) M210053 OK
7 K65-M257M-00X O-RING 3 20 S12.5
7-1 90200-01J125 O-RING 3 20 S12.5 (2001/11/27) M1X0094 OK
8 KV8-M7103-10X PLUG 4
9 KV8-M7104-00X PISTON 8
10 KM1-M7107-00X PACKING 8 LO43165
10-1 90990-22J006 PACKING 8 LO43165 (2002/1/21) (M210052) OK
11 KV8-M71VS-00X COLLAR,SENSOR 12
11-1 90990-41J066 COLLAR 12 (2008/4/17) ME20197 OK
12 KGB-M7184-00X BOLT HEXA.S.H 4
12-1 91317-03060 BOLT,HEX.SOCKET HEAD 4 (2007/10/29) MD00030 OK
13 KV8-M71RJ-00X COLLAR BRG. 4
14 KG7-M7137-A0X LEAF SPRING 8
15 KG7-M7169-00X SCREW 8
16 KG7-M7170-00X WASHER 8
16-1 90990-28J002 WASHER PLAIN 8 (2003/3/28) M330113 OK
17 KV8-M7109-00X COLLAR 1 HEAD 4
18 90933-03J128 BRG. 24 MF128ZZS
19 KGB-M7167-00X PULLEY 8
20 KV8-M7154-00X SPG.RETURN 4
21 KV8-M7108-00X NUT 8
22 90933-02J604 BRG. 8 604ZZ
23 99001-03600 CIRCLIP 1
23-1 90440-01J030 CIRCLIP 1 (2001/12/28) M1Y0129 OK
24 KU1-M7152-00X WASHER 1 THURUST 8
25 KV8-M7110-00X COLLAR 2 HEAD 4
Gaiet Electronics supply SMT Nozzles,SMT Feeders, SMT Splice Tapes, SMT Accessory, SMT Conveyor Belts,SMT Spare Parts,SMT Filter,Anti Static Products,SMT Feeder Rack,Vibration Feeders,SMT Tools for PCBA companys.
