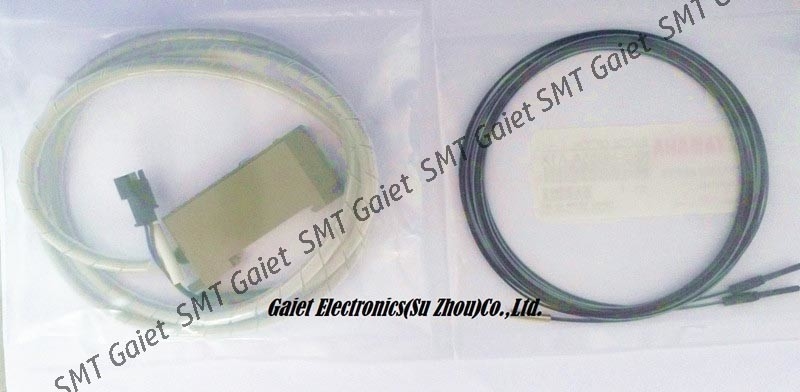

YAMAHA GUIDE CABLE KH5-M655A-A1X KH5-M155A-03X SMT FIBER OPTIC AND SENSOR ASSY.
Part Name:YAMAHA GUIDE CABLE
Part Number:KH5-M655A-A1X KH5-M155A-03X
Model:YV100X YV100II
YAMAHA GUIDE CABLE KH5-M655A-A1X KH5-M155A-03X is for YAMAHA Pick&Place machine YV100X YV100II Series.
YAMAHA Spare Parts please see as below,
1 KGJ-M3201-00X POWER LOCK 8
2 KGJ-M3202-00X PLATE, HOUSING 4
3 KGJ-M3203-00X PULLEY 1 8
4 KGJ-M3204-00X HOUSING, BALL SCREW 8
5 KGJ-M3205-00X HOUSING, BRG. PU 4
6 KGJ-M3209-00X SHAFT 1, PU 3
7 KGJ-M3211-00X STOPPER BAR, PU 2
8 KGJ-M3212-00X GUIDE BAR, Z 2
9 KGJ-M3215-00X BRACKET 1, PU 1
10 KGJ-M3216-00X BRACKET 2, PU 1
11 KGJ-M3218-00X BEARING 8
12 KGJ-M3219-00X PULLEY 3 1
13 KGJ-M3221-00X PLATE, MOTOR PU 1
14 KGJ-M3223-00X DOG 2
15 KGJ-M3224-00X STAY, DOG 2
16 KGJ-M3225-00X STAY, SENSOR PU 1
17 KGJ-M3229-00X PULLEY 5 2
18 KGJ-M3230-01X PLATE, Z 1
19 KGJ-M3232-00X PLATE, PU 1
20 KGJ-M3235-00X PLATE, PU 2 1
21 KGJ-M3238-00X BALL SCREW, ZPU 8
22 KGJ-M3240-01X DAMPER 2, PU 2
23 KGJ-M3241-00X DUMPER 2, Z 2
24 KGJ-M3242-00X BELT 1 1
25 KGJ-M3245-00X REGULATOR 1
26 KGJ-M3246-00X STAY, REGULATOR 1
27 KGJ-M3247-00X BRACKET 3, PU 1
28 KGJ-M3248-00X STAY, VALVE 1
29 KGJ-M3249-00X PULLEY 6 2
30 KGJ-M3252-00X BELT 3 2
31 KGJ-M3254-00X END PLATE, PU 2
32 KGJ-M3255-00X DUMPER, PU 2
33 KGJ-M3256-00X SHAFT 2, PU 1
34 KV8-M9213-00X EJECTOR 1
35 KV8-M9213-A0X SPARE FILTER 1 Spare
36 KGJ-M3262-00X PLATE, EJECTOR 1
37 KW3-M3213-00X END PLATE 2
38 KW3-M3214-00X DUMPER 2
39 KW3-M3244-00X SLIDE 2
40 KW3-M653A-10X SENSOR, 1-1 ASSY 2
41 KG2-M8582-40X VALVE 1 SPARE
42 KGJ-M3227-00X WASHER, PU 1
44 $KM-11 MUFFLER 1
45 $SL4-01 JOINT 2
46 $SL8-01 JOINT 1
47 $SL8-02 JOINT 2
48 91317-04010 BOLT HEX. SOCKET HEAD 14
49 91317-04012 BOLT HEX. SOCKET HEAD 8
50 91317-04016 BOLT HEX. SOCKET HEAD 2
51 91317-04018 BOLT HEX. SOCKET HEAD 6
52 91317-04022 BOLT HEX. SOCKET HEAD 4
53 91317-04025 BOLT HEX. SOCKET HEAD 8
54 91317-05016 BOLT HEX. SOCKET HEAD 18
55 91317-05018 BOLT HEX. SOCKET HEAD 41
56 91317-05030 BOLT HEX. SOCKET HEAD 23
57 91317-06016 BOLT HEX. SOCKET HEAD 6
58 91317-06030 BOLT HEX. SOCKET HEAD 8
59 90185-08J00 NUT SELF-LOCKING 8FU08SS
60 91317-06055 BOLT HEX. SOCKET HEAD 1
61 91317-08035 BOLT HEX. SOCKET HEAD 4
62 91317-08050 BOLT HEX. SOCKET HEAD 1
63 99480-04012 PIN, PARALLEL 2
64 99480-06012 PIN, PARALLEL 2
65 90933-01J201 BEARING 12
66 KGJ-M3208-00X WASHER
