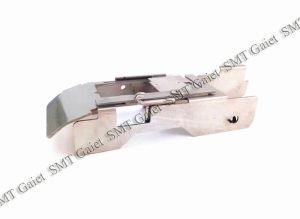

YAMAHA CL32MM Feeder TAPE GUIDE ASSY KW1-M5540-00X
Part Name: YAMAHA TAPE GUIDE ASSY
Part Number:KW1-M5540-00X
Model:CL32MM Feeder
YAMAHA CL32MM Feeder TAPE GUIDE ASSY KW1-M5540-00X is for YAMAHA Pick & Place machine CL32MM Feeder.
YAMAHA Spare Parts please see as below,
75 92D18-02008 BOLT HEX: M2X0.4X8 12
75-1 90115-02J008 BOLT HEX.SOCKET HEAD 12 (2002/8/21) M280085 OK
76 $KM-05 MUFFLER 7
76-1 $KM-05 MUFFLER 8 (2006/11/16) MCX0020 OK
77 $SLH8-01 JOINT 2
78 $TSH6-01 JOINT 2
79 KV8-M7162-00X SOLENOID VALVE(UNIT) 1
80 KGB-M7163-00X EJECTER,RESIN 1
80-1 KGB-M7163-01X EJECTOR,RESIN 1 (2006/12/11) MCY0027 OK
80-2 KGB-M71G1-00X EJECTOR,RESIN 1 (2008/5/23) H011471 NG
81 KGB-M71V9-00X COVER 2
82 90563-23J060 SPACER 4
82-1 Delete (2008/5/7) ME40130
83 KV8-M71VB-00X COVER SENSOR 1
84 KGB-M7169-00X SPACER 1
84-1 90990-41J076 COLLAR 1 (2008/4/11) ME30019 OK
85 KGB-M7170-00X GEAR 1 1
86 KGB-M7171-00X GEAR 2 1
87 KGB-M7172-00X COLLAR 1,GEAR 1
87-1 90990-41J009 COLLAR 1 (2008/4/15) ME20075 OK
88 KGB-M7173-00X COLLAR 2,GEAR 1
88-1 90990-41J010 COLLAR 1 (2008/4/15) ME20075 OK
89 KGB-M7174-00X SHAFT, GEAR 1
90 90933-02J085 BEARING 2 MR85ZZS
91 KGB-M7179-00X COVER, GEAR 1
92 KGB-M7185-00X PLATE 2, NUT 1
93 KGB-M7183-00X PLATE, EJECTOR 1
94 KV8-M71VR-00X PLATE, NUT 8
95 KM1-M4592-11X VAC SENSOR BOARD ASS 8
95-1 KM1-M4592-12X VAC SENSOR BOARD ASS 8 (2001/9/30) M190105 OK
95-2 KM1-M4592-13X VAC SENSOR BOARD ASS 8 (2005/4/19) MB40065 OK
96 KGB-M711S-A0X FNC SHAFT, SPARE 1 SPARE PARTS
97 KGB-M712S-A0X STD. SHAFT 1, SPARE 1 SPARE PARTS
98 KV8-M7103-A0X PISTON PLUG ASSY 4
99 KV8-M7103-B0X PLUG ASSY 4
100 KV8-M7104-A0X PISTON ASSY 8
101 KGB-M71S0-50X STD. SHAFT 3, SPARE 1 SPARE PARTS (2002/10/18) M200051
102 KGB-M711S-B0X FNC SHAFT, SPARE 1 NOZZLE CIRCLE (2002/12/13) M2Y0031
103 KV8-M712N-A0X NOZZLE&SHAFT ASSY 1 NOZZLE CIRCLE (2001/9/5) M190016
104 KGB-M71R9-00X PLATE, BRG 4 (2005/5/26) MB50099
105 92A08-04305 SET SCREW 3 M4X5
105-1 92A08-04305 SET SCREW 2 M4X5 (2007/2/27) MD10054 OK
106 KGB-M71Y9-A0X BODY, CYLINDER ASSY 1 (2001/2/2) M110144
107 KM1-M7105-A0X PLUG2 ASSY 8
