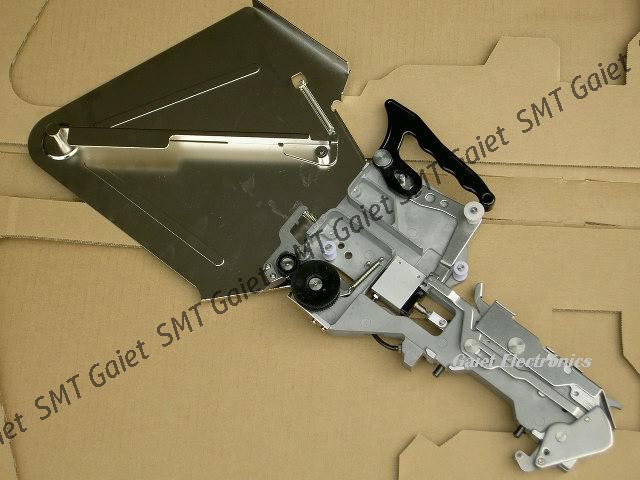

Yamaha CL16mm SMT Feeder KW1-M3200-100 SMT Spare Parts
Part Name:SMT YAMAHA CL16MM FEEDER
Part Number:KW1-M3200-100
Applicable Models:YV,YG
Brand:YAMAHA
Type:CL16MM
Yamaha CL16mm SMT Feeder KW1-M3200-100 is for YAMAHA Pick and Place Machine YV,YG Series.
YAMAHA FEEDER CL8 * 2MM KW1-M1300-020
YAMAHA FEEDER CL8 * 4MM KW1-M1100-030
YAMAHA FEEDER CL12MM KW1-M2200-301
YAMAHA FEEDER CL16MM KW1-M3200-100
YAMAHA FEEDER CL24MM KW1-M4500-015
YAMAHA FEEDER CL32MM KW1-M5500-015
YAMAHA FEEDER CL44MM KW1-M6500-015
YAMAHA FEEDER CL56MM KW1-M7500-015
YAMAHA FEEDER FSII8 * 2MM KJK-M1500-000
YAMAHA FEEDER FSII8 * 4MM KJK-M1500-011
YAMAHA FEEDER FT8 * 2MM KJK-M1500-010
YAMAHA FEEDER FT8 * 4MM
KHJ-MC100-000 ss8mm electric feeder
YAMAHA FEEDER CL16MM Accessories
No. Part No. Part Name Q’ty Remarks Date Revised No.
1 K87-M111H-20X BACK STOPPER 1
2 K87-M211B-00X BACK STOPPER AXIS 1
3 KW1-M111A-00X SPRING 1
4 K87-M111C-00X PLANE WASHER 1
5 K87-M11BF-00X SCREW, FLAT HEAD + IB 1
6 K87-M111D-00X PUSH PIN 1
7 K87-M111G-10X PUSH PIN 1
8 K87-M212L-10X SPROCKET AXIS ASSY 1
9 KW1-M222A-00X RACKING LEVER ASSY 1
10 K87-M112D-10X COIL SPRING 1
11 KW1-M221F-10X STOPPER PIN 1
12 K87-M1181-00X ROD CONNECT 1
13 K87-M1184-00X CONNECT PIN 1
14 KW1-M2285-00X MULTI CYLINDER 1
15 K87-M56C1-00X BARB CONNECTOR 2
16 KW1-M22B1-00X AIR HOSE 1 L60
17 K87-M11B9-00X CIRCLIP E 1
18 KW1-M22B6-00X BOLT, SOCKET HEAD SW 2
19 KW1-M3284-00X CYLINDER ADJ PLATE 1
20 KW1-M324A-00X HAND LEVER ASSY 1
21 KW1-M116K-00X LEVER AXIS 1
22 KW1-M3277-00X MAIN ARM 1
23 KW1-M321E-00X SPRING 1
24 KW1-M324D-00X SUB ARM 1
25 K87-M111C-00X PLANE WASHER 2
26 K87-M11BF-00X SCREW, FLAT HEAD + IB 2
27 K87-M214N-00X GUIDE AXIS 1
28 K87-M214P-00X GUIDE PIN 1
29 K87-M111T-00X SCREW, SET 2
30 K87-M111R-00X SCREW, SET 6
31 K87-M1120-10X SPROCKET ASSY 1
32 KW1-M3240-00X TAPE GUIDE ASSY 1
No. Part No. Part Name Q’ty Remarks Date Revised No.
1 KW1-M3210-00X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN 1 FRONT
3 KW1-M1113-00X KNOCK PIN 1 REAR
4 K87-M1115-00X CIRCULAR RIVET 2
5 KW1-M226F-00X LEVER METAL 1
6 KW1-M326H-00X METAL AXIS 1
7 KW1-M236V-00X ROLLER 1
8 KW1-M3250-00X HANDLE LEVER ASSY 1
9 KW1-M116K-00X LEVER AXIS 1
10 KW1-M226D-00X TENSION LEVER ASSY 1
11 KW1-M116F-00X LEVER AXIS PIN 1
12 K87-M1115-00X CIRCULAR RIVET 2
13 KW1-M2231-00X CLAMP LEVER UNIT 1
14 KW1-M2232-00X CLAMP LEVER ASSY 1
15 K87-M213A-00X CLANK ARM ASSY 1
16 K87-M113D-00X ARM 2
17 K87-M113E-00X HINGE PIN 2 1
18 K87-M11D7-00X CIRCLIP E 2
19 K87-M213L-10X CLAMP LEVER AXIS 1
20 K87-M213M-00X AXIS PIN 1
21 K87-M113H-00X PUSH PIN 1
22 K87-M111V-00X SCREW, SET 2
23 KW1-M326J-00X METAL SHAFT 1
24 KW1-M22B5-00X BOLT, HEX SOCKET HEAD 3
25 KW1-M3291-00X DRIVE ROLLER UNIT 1
26 KW1-M3292-00X INDENTATION LVR ASSY 1
27 KW1-M329F-00X DRIVE ROLLER ASSY 1
28 K87-M117B-00X PLANE WASHER 1
29 K87-M11BB-00X SCREW, FLAT HEAD + IB 1
30 KW1-M229K-00X SPRING 1
31 KW1-M329L-00X IDLE ROLLER ASSY 1
32 KW1-M229R-00X COLLAR 1
33 K87-M21BB-00X SCREW, TRUSS HEAD 1
34 KW1-M119P-00X SPRING 1
35 KW1-M32A1-00X LOWER GUIDE PLATE R 1
36 K87-M53BS-00X SCREW, PAN HEAD +2
37 KW1-M32A3-00X LOVER GUIDE PLATE L 1
38 K87-M111N-00X SCREW, PAN HEAD +2
39 KW1-M325L-10X HOLD ARM 1 BLACK
40 KW1-M325M-00X ARM AXIS 1
No. Part No. Part Name Q’ty Remarks Date Revised No.
1 KW1-M32D0-10X REEL HOLDER ASSY 1
2 KW1-M32D1-10X REEL PLATE ASSY 1
3 K87-M11D7-20X CIRCLIP C 1
4 KW1-M32DA-10X TENSION LEVER ASSY 1
5 K87-M22DL-00X SPRING 1
6 K87-M55BN-00X SCREW, FLAT HEAD + 3
