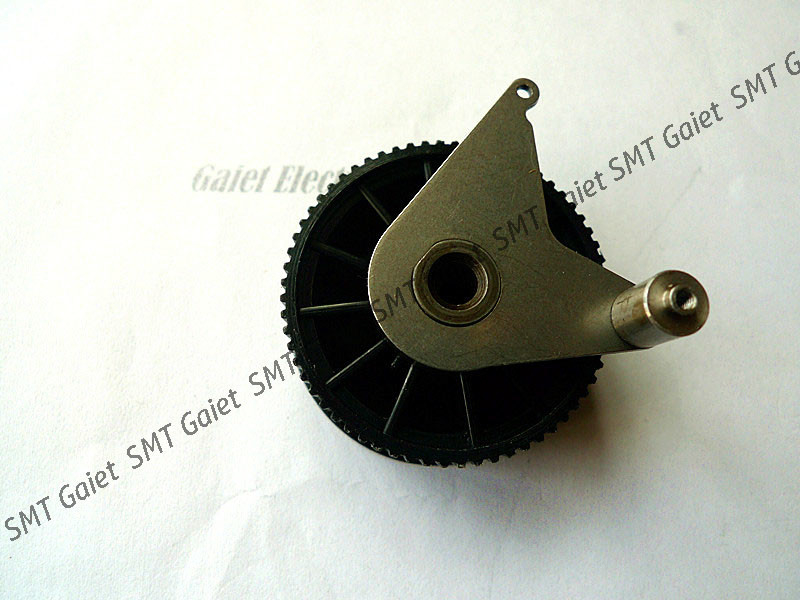

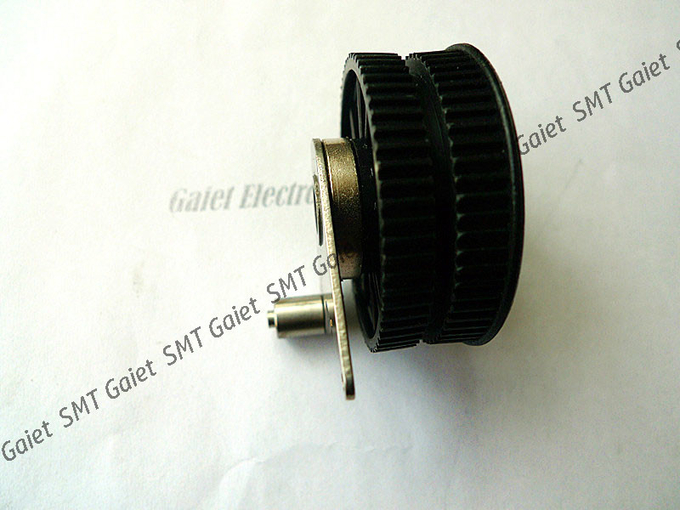

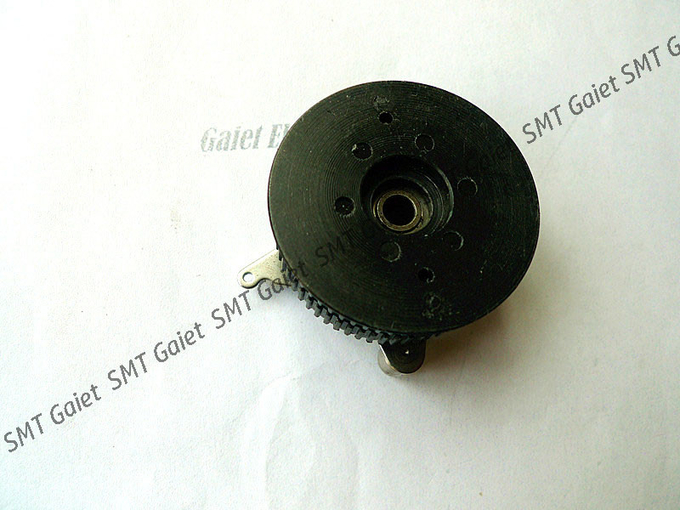

SMT YAMAHA CL16MM FEEDER PART KW1-M3291-00X DRIVE ROLLER UNIT
Part Name:YAMAHA DRIVE ROLLER UNIT
Part Number:KW1-M3291-00X
Model:CL16MM
KW1-M3291-00X DRIVE ROLLER UNIT is for YAMAHA Pick and Place Machine CL16MM Feeder.
YAMAHA Spare Parts please see as below,
1 KGJ-M3201-00X POWER LOCK 8
2 KGJ-M3202-00X PLATE, HOUSING 4
3 KGJ-M3203-00X PULLEY 1 8
4 KGJ-M3204-00X HOUSING, BALL SCREW 8
5 KGJ-M3205-00X HOUSING, BRG. PU 4
6 KGJ-M3209-00X SHAFT 1, PU 3
7 KGJ-M3211-00X STOPPER BAR, PU 2
8 KGJ-M3212-00X GUIDE BAR, Z 2
9 KGJ-M3215-00X BRACKET 1, PU 1
10 KGJ-M3216-00X BRACKET 2, PU 1
11 KGJ-M3218-00X BEARING 8
12 KGJ-M3219-00X PULLEY 3 1
13 KGJ-M3221-00X PLATE, MOTOR PU 1
14 KGJ-M3223-00X DOG 2
15 KGJ-M3224-00X STAY, DOG 2
16 KGJ-M3225-00X STAY, SENSOR PU 1
17 KGJ-M3229-00X PULLEY 5 2
18 KGJ-M3230-01X PLATE, Z 1
19 KGJ-M3232-00X PLATE, PU 1
20 KGJ-M3235-00X PLATE, PU 2 1
21 KGJ-M3238-00X BALL SCREW, ZPU 8
22 KGJ-M3240-01X DAMPER 2, PU 2
23 KGJ-M3241-00X DUMPER 2, Z 2
24 KGJ-M3242-00X BELT 1 1
25 KGJ-M3245-00X REGULATOR 1
26 KGJ-M3246-00X STAY, REGULATOR 1
27 KGJ-M3247-00X BRACKET 3, PU 1
28 KGJ-M3248-00X STAY, VALVE 1
29 KGJ-M3249-00X PULLEY 6 2
30 KGJ-M3252-00X BELT 3 2
31 KGJ-M3254-00X END PLATE, PU 2
32 KGJ-M3255-00X DUMPER, PU 2
33 KGJ-M3256-00X SHAFT 2, PU 1
34 KV8-M9213-00X EJECTOR 1
35 KV8-M9213-A0X SPARE FILTER 1 Spare
36 KGJ-M3262-00X PLATE, EJECTOR 1
37 KW3-M3213-00X END PLATE 2
38 KW3-M3214-00X DUMPER 2
39 KW3-M3244-00X SLIDE 2
40 KW3-M653A-10X SENSOR, 1-1 ASSY 2
41 KG2-M8582-40X VALVE 1
