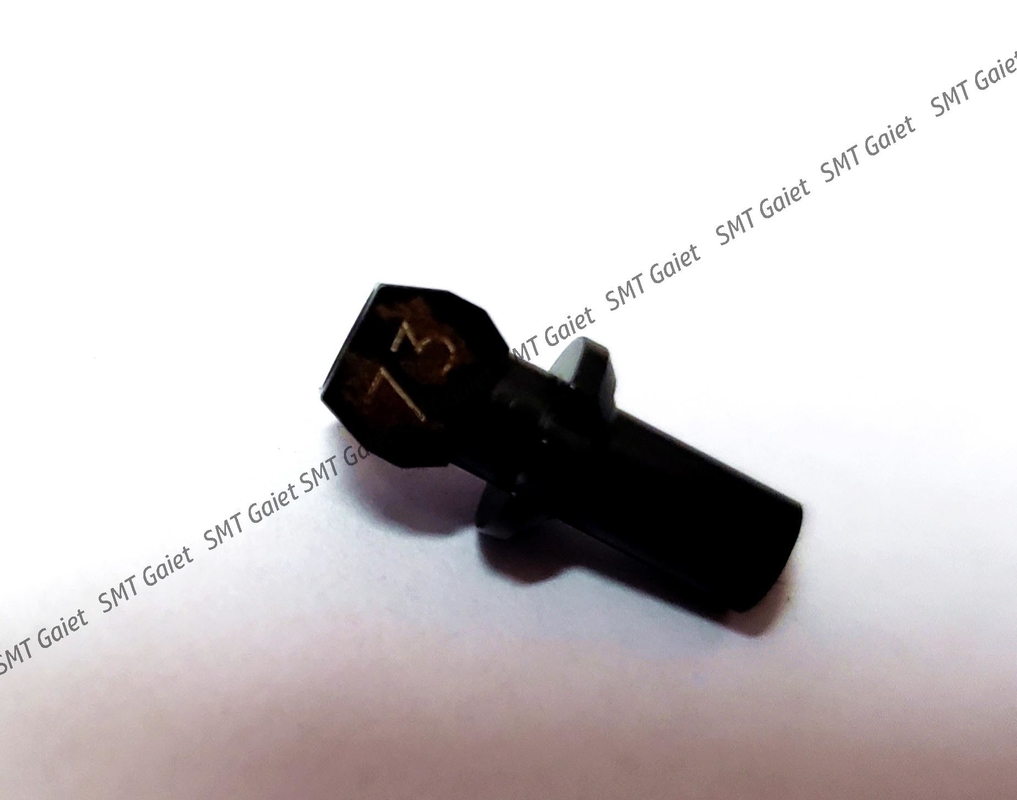

SMT 9965 000 02777 Assembleon Nozzle 73A Type
Part Name: Assembleon Nozzle
Part Number: 9965 000 02777
Applicable Models: Topaz-X, Topaz-XII
SMT 9965 000 02777 Assembleon Nozzle 73A Type is for Assembleon Pick and Place Machine Topaz Series.
We offer all kinds of Assembleon SMT nozzle,the quality is welcome,and the price is very competitive, many famous EMS compnaies from more than 20 countries are using them for more than 10 years .
PHILIPS Parts as below,
5322 532 12547 Seal is located on the lower part of the piston shaft
5322 532 12545 Chevron seal used in Piston upper and lower plugs.
5322 532 12546 Chevron seal used in Piston assembly Packing
5322 532 13169 Packing
5322 530 51347 Packing,
5322 358 10173 Belt R-Axis Motor drive
5322 358 10174 Belt, R-Axis Spline
9965 000 09055 Belt, head
5322 358 10276 Belt
9965 000 10373 Pulley
5322 528 81507 Pulley Conveyor
5322 358 31283 Belt
5322 360 10323 Piston Assy (Piston cylinder only for HEAD 1)
5322 360 10206 Piston, Head Up Down Assembly Heads 1-8
5322 360 10481 Piston, Assembly Spline up down
5322 462 10762 Plug 2, assy (lower plug contains items 4,5,11)
5322 462 11201 Plug assy (plug assy 1-3-5-7)
9965 000 03801 Plug assy (plug assy 2-4-6-8)
5322 530 10289 O-ring, plugs
5322 530 51297 O-ring, metal caps
5322 530 10474 O-ring, plastic caps
5322 530 10292 O-ring, inlets
5322 530 10442 O-ring
5322 530 10441 O-ring
