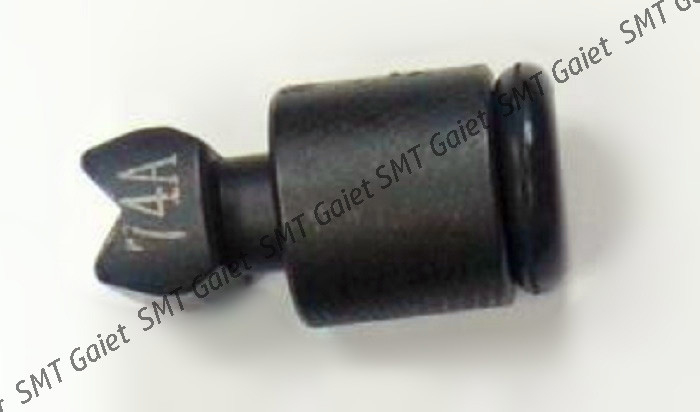

5322 360 10495 Philips Nozzle 74A Assembleon Nozzle
Part Name: Assembleon Nozzle
Part Number: 5322 360 10495
Applicable Models: Topaz-X, Topaz-XII
5322 360 10495 Philips Nozzle 74A Assembleon Nozzle is for Assembleon Pick and Place Machine Topaz Series.
PHILIPS Parts as below,
5322 360 10207 Valve speed select
9965 000 03808 Valve, speed select
5322 360 10208 Valve up/down
9965 000 03807 Valve, up-down select
5322 693 11367 Single ejector
9965 000 09042 Ejector, Single
5322 360 10209 Valve blow-off
5322 281 20202 Single valve
5322 532 12547 Seal is located on the lower part of the piston shaft
5322 532 12545 Chevron seal used in Piston upper and lower plugs.
5322 532 12546 Chevron seal used in Piston assembly Packing
5322 532 13169 Packing
5322 530 51347 Packing,
5322 358 10173 Belt R-Axis Motor drive
5322 358 10174 Belt, R-Axis Spline
9965 000 09055 Belt, head
5322 358 10276 Belt
9965 000 10373 Pulley
5322 528 81507 Pulley Conveyor
5322 358 31283 Belt
5322 360 10323 Piston Assy (Piston cylinder only for HEAD 1)
5322 360 10206 Piston, Head Up Down Assembly Heads 1-8
5322 360 10481 Piston, Assembly Spline up down
5322 462 10762 Plug 2, assy (lower plug contains items 4,5,11)
5322 462 11201 Plug assy (plug assy 1-3-5-7)
9965 000 03801 Plug assy (plug assy 2-4-6-8)
