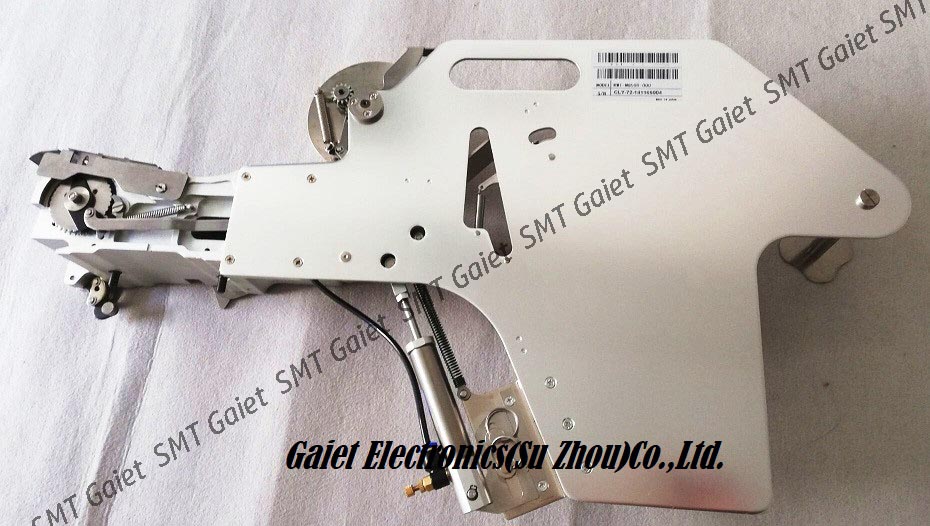

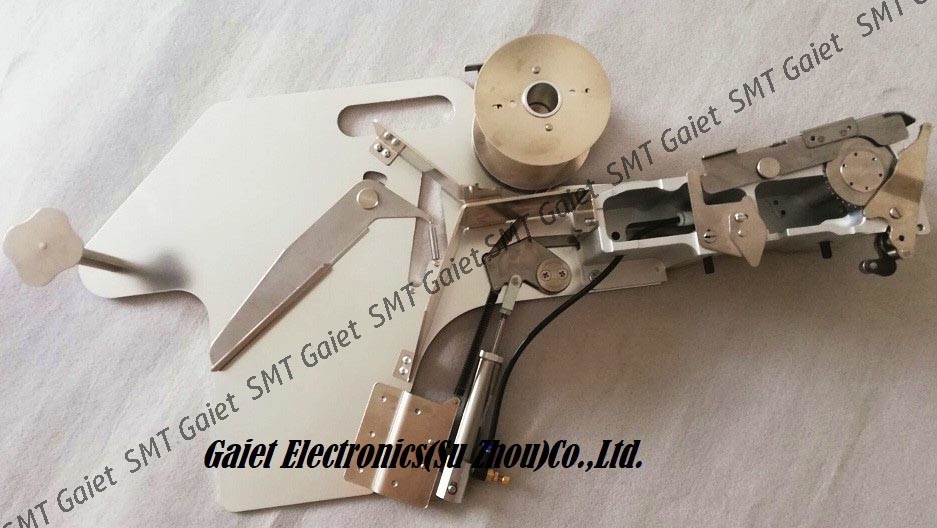

PA2903/67 Assembleon 72mm CL Tape Feeder 9498 396 01977

PA2903/67 Assembleon 72mm CL Tape Feeder 9498 396 01977

Part Name:Assembleon 72mm CL Tape Feeder

Part Number:9498 396 01977 PA2903/67

Applicable Models:Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, Opal XII

Brand: Assembleon

Type:CL72MM

PA2903/67 Assembleon 72mm CL Tape Feeder 9498 396 01977 is applied for Assembleon pick and place machines Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, Opal XII Series.

Assembleons Parts is as below,

Part No.                   Description

9498 396 00339      PA2903/77 Assembleon 8X2mm Green Handle 0201 CL Tape Feeder

9498 396 00340      PA2903/78 Assembleon 8X2mm Blue Handle 0402 CL Tape Feeder

9498 396 00341      PA2903/79 Assembleon 8X4mm Black Handle CL Tape Feeder

9498 396 00342      PA2903/88 Assembleon 12mm CL Tape Feeder

9498 396 00338      PA2903/27 Assembleon 16mm CL Tape Feeder

9965 000 15825      PA2903/38 Assembleon 24mm CL Tape Feeder

9965 000 15826      PA2903/48 Assembleon 32mm CL Tape Feeder

9965 000 15827      PA2903/58 Assembleon 44mm CL Tape Feeder

9965 000 15828      PA2903/68 Assembleon 56mm CL Tape Feeder

9498 396 01977      PA2903/67 Assembleon 72mm CL Tape Feeder

5322 360 10207 Valve speed select

9965 000 03808 Valve, speed select

5322 360 10208 Valve up/down

9965 000 03807 Valve, up-down select

5322 693 11367 Single ejector

9965 000 09042 Ejector, Single

5322 360 10209 Valve blow-off

5322 281 20202 Single valve

5322 216 04084 Vacuum sensor board

5322 216 04673 Vacuum sensor board

5322 132 00141 Sensor, head down sensing

9965 000 10927 Sensor, head down sensing

5322 132 00036 Sensor Head

5322 132 00132 Sensor W origin

5322 132 00056 Sensor 1-3 (L=1150)

9965 000 06136 Sensor 1-3 (L=1400)

5322 130 10079 Sensor Presure

5322 693 11352 Spline assy (Complete spline shaft assy head 1)

5322 693 11199 Spline assy (Complete spline shaft heads 2-8, indicated with “Y” means 40 um accuracy)

5322 693 11539 Topaz Inner spline shaft heads 2-8

5322 693 11542 Inner Spline, 16 micron

5322 535 10674 Shaft head asyy (shaft head assy head 1-3-5-7 for SF and FNC head)

9965 000 03802 SHAFT NOZZLE HEAD

5322 535 10676 Shaft head assy (spline shaft assy 2-4-6-8 only for FNC head)

9965 000 10930 Spline Shaft, Even Heads, FNC

9965 000 10928 Spline Shaft, even Heads SF

9965 000 10929 Spline Shaft, Odd Heads SF and FNC

9965 000 10928 Spline Shaft, even Heads SF

9965 000 10929 Spline Shaft, Odd Heads SF and FNC

5322 216 04674 I/O Board for Topaz Xii (BD CNV)

9965 000 11067 I/O Core Board for Topaz Xii (BD)

5322 360 10483 Nozzle assy (nozzle assy heads 2-4-6-8)
