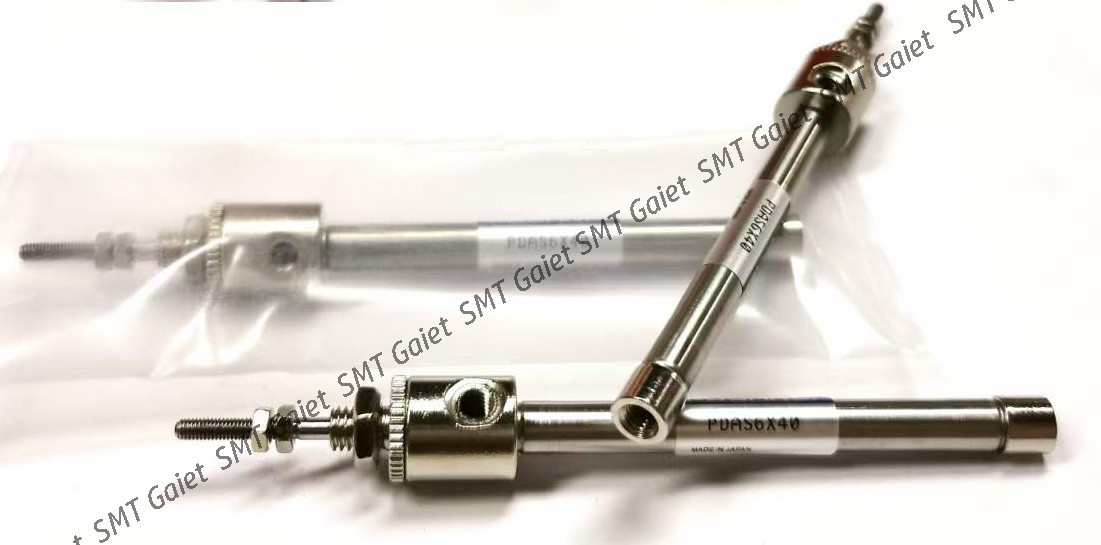

KV7-M9165-00X YAMAHA YV100X YV100XG YV100II Cylinder PDAS6x40
Part Name:Cylinder
Part Number:KV7-M9165-00X
Model: YV100X YV100XG YV100II PDAS6x40
KV7-M9165-00X YAMAHA YV100X YV100XG YV100II Cylinder PDAS6x40 is for YAMAHA Pick&Place machine YV100X YV100XG YV100II Series.
Yamaha Spare Parts as below,
26 KV8-M71X2-00X SPG.RETURN 4
27 KV8-M71X1-00X SPG.LOCATE 4
28 KV8-M71R1-10X SHAFT 1 1 Fig A
KV8-M71R1-20X SHAFT 1 1 Fig B
KV8-M71R1-30X SHAFT 1 1 Fig C
29 KV8-M71R2-01X BLOCK STOPPER 4
30 KV7-M71M6-01X SCREW,NOZZLE 2
30-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) MD00082 OK
31 KV8-M71R5-02X PIN LOCATE 4
32 KV8-M71R9-00X CAM 8
33 KGB-M71RA-00X BEVEL – GEAR 1 4
34 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY. 1
34-1 KV8-M71RB-11X BEVEL-GEAR 2 1 (2007/10/1) MD80023 OK
35 KV8-M71RC-00X PIN CAM 8
36 KV8-M71RD-00X CIRCLIP 16 E0.8
36-1 90440-01J008 CIRCLIP 16 (2001/12/28) M1Y0129 OK
36-2 90440-10J008 CIRCLIP 16 (2002/2/26) M220094 OK
37 KV8-M71RE-00X WASHER 1
37-1 90990-28J077 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
38 99009-12800 CIRCLIP 4 S12
39 KV8-M71U0-01X NOZZLE ASSY 4
39-1 KV8-M711N-A0X NOZZLE&SHAFT ASSY 4 (2001/8/27) M180124
40 KGB-M71R7-00X HOLDER BRG. 4
40-1 KGB-M71R7-01X HOLDER BRG. 4 2006/6/15 MB50099 NG
41 KV8-M71R8-00X COLLAR BRG. 4
41-1 KGB-M71R8-00X COLLAR BRG. 4 2006/6/15 MB50099 NG
42 90933-01J801 BEARING 4
43 KGB-M7111-00X PULLY POST 1
44 KV8-M7115-00X SHAFT 1 TENSION 4
45 KGB-M7116-00X PULLY 2 1
46 KV8-M7117-00X BLOCK, ADJUST 1
47 KV8-M7119-00X BLOCK, ADJUST 1
48 KV8-M7131-01X BRACKET, Z SENSOR 1
49 KV8-M7166-00X PLATE, VALVE 1
50 KGB-M71V1-01X SENSOR, STAY F 1 Z2
