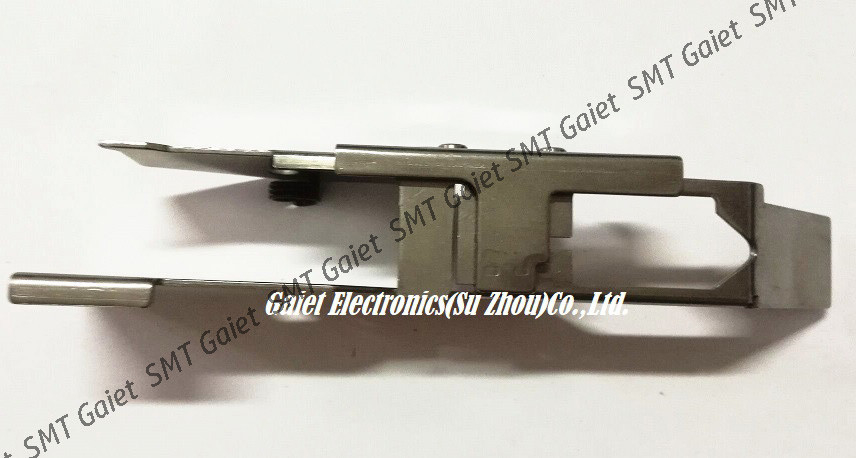

Assembleon Tape Guide Assy.9965 000 10237 Philips Spare Parts
Part Name:Tape Guide Assy.
Part Number:9965 000 10237
Model:Topaz-Xii
Assembleon Tape Guide Assy.9965 000 10237 is for Assembleon Pick and Place Machine Topaz-Xii Series.
PHILIPS Parts as below,
9965 000 10928 Spline Shaft, even Heads SF
9965 000 10929 Spline Shaft, Odd Heads SF and FNC
5322 216 04674 I/O Board for Topaz Xii (BD CNV)
9965 000 11067 I/O Core Board for Topaz Xii (BD)
5322 360 10483 Nozzle assy (nozzle assy heads 2-4-6-8)
5322 360 40523 Cylinder Main Stopper
5322 535 92541 Speed Controller
5322 360 40471 Cylinder sub stopper
5322 360 10205 Cylinder up/down
5322 526 40896 Joint
5322 502 60165 Screw (M2x3) leaf spring
5322 492 71713 Leaf spring
5322 492 11793 Leaf spring
5322 360 20081 Filter
5322 360 20106 MUFFLER
5322 530 70461 Circlip, shaft
5322 530 70526 CIRCLIP
5322 532 12547 Seal is located on the lower part of the piston shaft
5322 532 12545 Chevron seal used in Piston upper and lower plugs.
5322 532 12546 Chevron seal used in Piston assembly Packing
5322 532 13169 Packing
5322 530 51347 Packing,
5322 358 10173 Belt R-Axis Motor drive
5322 358 10174 Belt, R-Axis Spline
9965 000 09055 Belt, head
5322 358 10276 Belt
9965 000 10373 Pulley
5322 528 81507 Pulley Conveyor
5322 358 31283 Belt
5322 360 10323 Piston Assy (Piston cylinder only for HEAD 1)
5322 360 10206 Piston, Head Up Down Assembly Heads 1-8
5322 360 10481 Piston, Assembly Spline up down
5322 462 10762 Plug 2, assy (lower plug contains items 4,5,11)
5322 462 11201 Plug assy (plug assy 1-3-5-7)
9965 000 03801 Plug assy (plug assy 2-4-6-8)
5322 530 10289 O-ring, plugs
5322 530 51297 O-ring, metal caps
5322 530 10474 O-ring, plastic caps
5322 530 10292 O-ring, inlets
5322 530 10442 O-ring
5322 530 10441 O-ring
