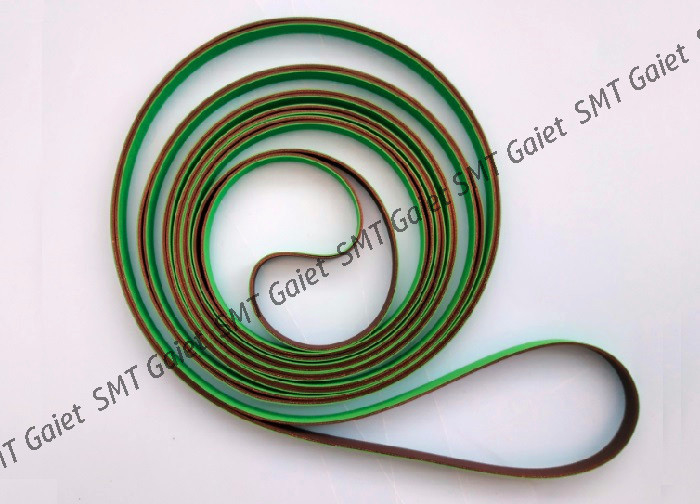

Assembleon Spare Parts 5322 358 10146 Conveyor Belt 5322 358 10211
Part Name: Assembleon Conveyor Belt
Part Number: 5322 358 10146 5322 358 10211
Model: GEM, Topaz
Assembleon Spare Parts 5322 358 10146 Conveyor Belt 5322 358 10211 is applied for Assembleon SMT pick and place machines GEM,Topaz Series.
Assembleons Parts is as below,
5322 132 00036 Sensor Head
5322 132 00132 Sensor W origin
5322 132 00056 Sensor 1-3 (L=1150)
9965 000 06136 Sensor 1-3 (L=1400)
5322 130 10079 Sensor Presure
5322 693 11352 Spline assy (Complete spline shaft assy head 1)
5322 693 11199 Spline assy (Complete spline shaft heads 2-8, indicated with “Y” means 40 um accuracy)
5322 693 11539 Topaz Inner spline shaft heads 2-8
5322 693 11542 Inner Spline, 16 micron
5322 535 10674 Shaft head asyy (shaft head assy head 1-3-5-7 for SF and FNC head)
9965 000 03802 SHAFT NOZZLE HEAD
5322 535 10676 Shaft head assy (spline shaft assy 2-4-6-8 only for FNC head)
9965 000 10930 Spline Shaft, Even Heads, FNC
9965 000 10928 Spline Shaft, even Heads SF
9965 000 10929 Spline Shaft, Odd Heads SF and FNC
9965 000 10928 Spline Shaft, even Heads SF
9965 000 10929 Spline Shaft, Odd Heads SF and FNC
5322 216 04674 I/O Board for Topaz Xii (BD CNV)
9965 000 11067 I/O Core Board for Topaz Xii (BD)
5322 360 10483 Nozzle assy (nozzle assy heads 2-4-6-8)
5322 360 40523 Cylinder Main Stopper
5322 535 92541 Speed Controller
5322 360 40471 Cylinder sub stopper
5322 360 10205 Cylinder up/down
5322 526 40896 Joint
5322 502 60165 Screw (M2x3) leaf spring
5322 492 71713 Leaf spring
5322 492 11793 Leaf spring
5322 360 20081 Filter
5322 360 20106 MUFFLER
5322 530 70461 Circlip, shaft
5322 530 70526 CIRCLIP
5322 532 12547 Seal is located on the lower part of the piston shaft
5322 532 12545 Chevron seal used in Piston upper and lower plugs.
5322 532 12546 Chevron seal used in Piston assembly Packing
5322 532 13169 Packing
5322 530 51347 Packing,
5322 358 10173 Belt R-Axis Motor drive
5322 358 10174 Belt, R-Axis Spline
9965 000 09055 Belt, head
